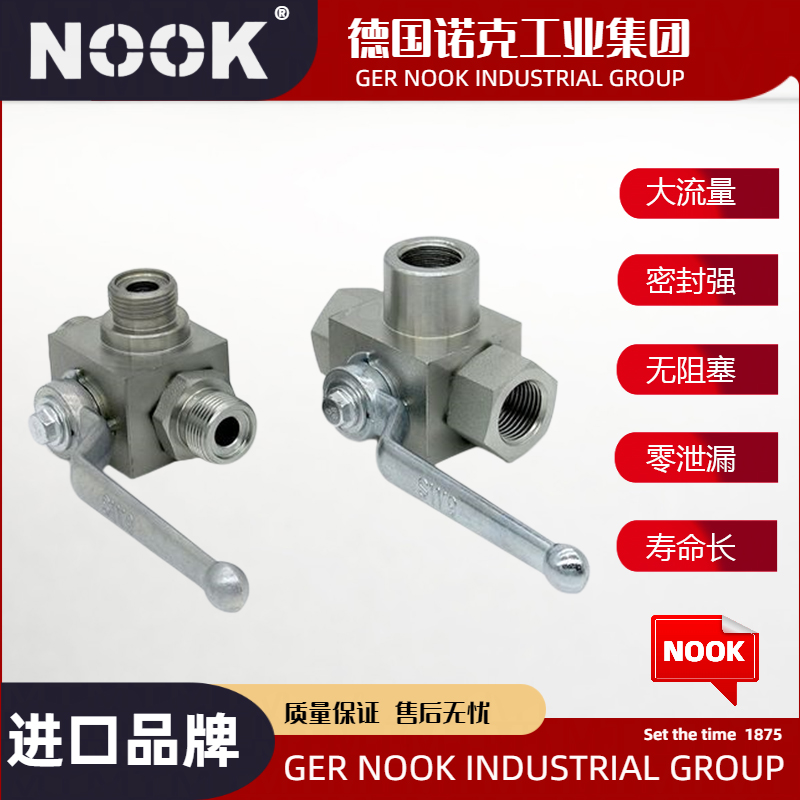

KHB3K高压三通球阀@德国NOOK诺克有T型和L型。T型能使三条正交的管道相互联通和切断第三条通道，起分流、合流作用。L型只能连接相互正交的两条管道，不能同时保持第三条管道的相互连通，只起分配作用。
① 系列代号：KHB3K（BK3）系列二位三通球阀
② 连接代号：M** 、G** 、 **LR 、**SR、PT**、NPT**
③ 阀体材料：1-钢、2-不锈钢
④ 球体材料：1-钢、2-黄铜、3-不锈钢
⑤ 工作温度：1、-25～＋100℃ 2、-30～＋170℃
⑥ 其他密封：2-丁晴橡胶、4-氟橡胶
⑦ 手柄形式：01-铝质直柄02-铝质曲柄03-铸锌直柄04-铸锌曲柄05-钢质直柄06-钢质曲柄09-不带手柄
⑧ 设计序号：由生产商定
⑨ 表面处理：空白-磷化、G-电镀黄锌

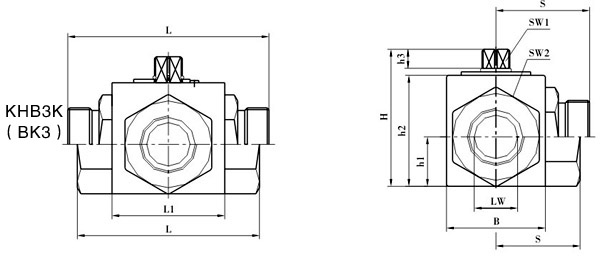

简略型号 | PN(bar) | DN | LW | RA | d1 | i | L | L1 | B | H | h1 | h2 | h3 | SW1 | SW2 | S |
KHB3K-M16×1.5 | 500 | 06 | 06 | 11 | M16×1.5 | 11 | 69 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 | 27.5 |
KHB3K-M22×1.5 | 500 | 08 | 08 | 16 | M22×1.5 | 12 | 76 | 42 | 32 | 49 | 16 | 36 | 10 | 09 | 27 | 33 |
KHB3K-M27×1.5 | 500 | 10 | 10 | 20 | M27×1.5 | 12 | 76 | 42 | 32 | 49 | 16 | 36 | 10 | 09 | 27 | 33 |
KHB3K-M30×1.5 | 400 | 16 | 15 | 24 | M30×1.5 | 13 | 84 | 48 | 38 | 61 | 19 | 45 | 11 | 09 | 32 | 37 |
KHB3K-M36×2 | 315 | 20 | 20 | 30 | M36×2 | 15 | 103 | 60 | 48 | 70 | 25 | 55 | 11 | 12 | 41 | 45.5 |
KHB3K-M42×2 | 315 | 25 | 23 | 35 | M42×2 | 18 | 116 | 65 | 57 | 79 | 28.5 | 64 | 11 | 12 | 50 | 54 |
KHB3K-M52×2 | 315 | 32 | 32 | 40 | M52×2 | 20 | 149 | 84 | 75 | 101 | 37.5 | 84 | 12 | 14 | 60 | 70 |
KHB3K-M60×2 | 315 | 40 | 38 | 45 | M60×2 | 22 | 174 | 91 | 85 | 112 | 42.5 | 95 | 12 | 14 | 70 | 84 |
简略型号 | PN(bar) | DN | LW | RA | d1 | i | L | L1 | B | H | h1 | h2 | h3 | SW1 | SW2 | S |
KHB3K-G1/8 | 500 | 04 | 06 | ／ | G1/8 | 10 | 69 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 | 35 |
KHB3K-G1/4 | 500 | 06 | 06 | ／ | G1/4 | 14 | 69 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 | 35 |
KHB3K-G3/8 | 500 | 10 | 10 | ／ | G3/8 | 14 | 72 | 42 | 32 | 49 | 16 | 36 | 10 | 09 | 27 | 36 |
KHB3K-G1/2 | 500 | 13 | 12 | ／ | G1/2 | 16 | 83 | 48 | 35 | 49 | 17 | 40 | 10 | 09 | 30 | 40 |
KHB3K-G1/2 | 400 | 16 | 15 | ／ | G1/2 | 16 | 83 | 48 | 38 | 61 | 19 | 45 | 11 | 09 | 32 | 42 |
KHB3K-G3/4 | 315 | 20 | 20 | ／ | G3/4 | 18 | 95 | 60 | 48 | 70 | 25 | 55 | 11 | 12 | 41 | 49 |
KHB3K-G1 | 315 | 25 | 25 | ／ | G1 | 21 | 113 | 65 | 57 | 79 | 28.5 | 64 | 11 | 12 | 50 | 56.5 |
KHB3K-G 11/4 | 315 | 32 | 32 | ／ | G 11/4 | 22 | 110 | 84 | 75 | 101 | 37.5 | 84 | 12 | 14 | 60 | 62.5 |
KHB3K-G 11/2 | 315 | 40 | 38 | ／ | G 11/2 | 24 | 130 | 91 | 85 | 112 | 42.5 | 95 | 12 | 14 | 70 | 61 |
KHB3K-G2 | 315 | 50 | 48 | ／ | G2 | 26 | 140 | 100 | 105 | 131 | 52.5 | 112 | 12 | 14 | 80 | 62.5 |
简略型号 | PN(bar) | DN | LW | RA | d1 | i | L | L1 | B | H | h1 | h2 | h3 | SW1 | SW2 | S |
KHB3K-NPT1/8 | 500 | 04 | 06 | ／ | NPT1/8 | 10 | 69 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 | 35 |
KHB3K-NPT1/4 | 500 | 06 | 06 | ／ | NPT1/4 | 14 | 69 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 | 35 |
KHB3K-NPT3/8 | 500 | 10 | 10 | ／ | NPT3/8 | 14 | 72 | 42 | 32 | 49 | 16 | 36 | 10 | 09 | 27 | 36 |
KHB3K-NPT1/2 | 500 | 13 | 12 | ／ | NPT1/2 | 16 | 83 | 48 | 35 | 49 | 17 | 40 | 10 | 09 | 30 | 40 |
KHB3K-NPT1/2 | 400 | 16 | 15 | ／ | NPT1/2 | 16 | 83 | 48 | 38 | 61 | 19 | 45 | 11 | 09 | 32 | 42 |
KHB3K-NPT3/4 | 315 | 20 | 20 | ／ | NPT3/4 | 18 | 95 | 60 | 48 | 70 | 25 | 55 | 11 | 12 | 41 | 49 |
KHB3K-NPT1 | 315 | 25 | 25 | ／ | NPT1 | 21 | 113 | 65 | 57 | 79 | 28.5 | 64 | 11 | 12 | 50 | 56.5 |
KHB3K-NPT 11/4 | 315 | 32 | 32 | ／ | NPT 11/4 | 22 | 110 | 84 | 75 | 101 | 37.5 | 84 | 12 | 14 | 60 | 62.5 |
KHB3K-NPT 11/2 | 315 | 40 | 38 | ／ | NPT 11/2 | 24 | 130 | 91 | 85 | 112 | 42.5 | 95 | 12 | 14 | 70 | 61 |
KHB3K-NPT2 | 315 | 50 | 48 | ／ | NPT2 | 26 | 140 | 100 | 105 | 131 | 52.5 | 112 | 12 | 14 | 80 | 62.5 |
